How to replace Wiper Motor for the front and rear on Mazda 6?

In order to change the front wiper motor, you have to begin by removing the wiper arm nuts and noting the location of the wiper arms on their own shafts before removing both the arms. Then remove the cowl panel, unhook the electrical connector into the wiper motor and unscrew the two mounting bolts to remove the wiper motor and link assembly. Take a good care to remove the linkage of the motor crank arm and then remove the nut that holds the crank arm to the motor shaft. Align the crank arm with the motor shaft and loosen it then disconnect it and then loosen the two motor mounting bolts to remove the motor out of the bracket. On the motor on the rear wiper, the first step is to disconnect the cable at the negative battery terminal, the next step is to loosen the nut on the arm and mark the position of the arm before removing it. Then remove the liftgate trim panel, remove the electrical connector to the wiper motor, and remove the mounting bolts in order to remove the wiper motor out of the liftgate. The two motors are reinstalled in the same order as they were removed.

Genuine Mazda 6 Wiper Motor

Windshield Wiper Motors

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Wiper Motors found

View related parts
Mazda 6 Wiper Motor Part Number: GHP9-67-340B
$168.30 MSRP: $224.45
You Save: $56.15 (26%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor, Wiper
- Replaces: GHP9-67-340
- Warranty: This genuine part is guaranteed by Mazda's factory warranty.
Fits the following Vehicles:
- 2014-2021 Mazda 6 | Carbon Edition, Grand Touring, Grand Touring Reserve, Signature, Sport, Touring | 4 Cyl 2.5 L GAS
View related parts
Mazda 6 Wiper Motor Part Number: GP7A-67-340A
$120.45 MSRP: $160.63
You Save: $40.18 (26%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor, Wiper; Front Motor
- Replaces: GP7A-67-340
- Warranty: This genuine part is guaranteed by Mazda's factory warranty.
Fits the following Vehicles:
- 2006-2008 Mazda 6 | Mazdaspeed, S, i | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts

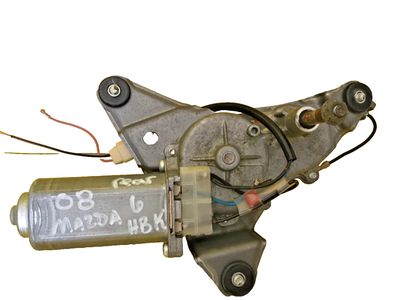

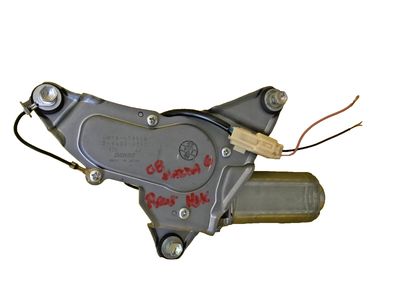

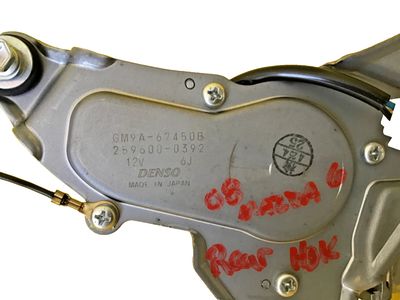

Mazda 6 Wiper Motor Part Number: GM9A-67-450B
$192.48 MSRP: $256.69
You Save: $64.21 (26%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor; Rear Motor
- Replaces: GM9A-67-450, GM9A-67-450A
- Warranty: This genuine part is guaranteed by Mazda's factory warranty.
Fits the following Vehicles:
- 2004-2008 Mazda 6 | Mazdaspeed, S, i | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mazda 6 Rear Motor Part Number: GM9A-67-482
$6.35 MSRP: $8.34
You Save: $1.99 (24%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump, Washer
- Position: Rear
- Warranty: This genuine part is guaranteed by Mazda's factory warranty.
Fits the following Vehicles:
- 2004-2008 Mazda 6 | Mazdaspeed, S, i | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts

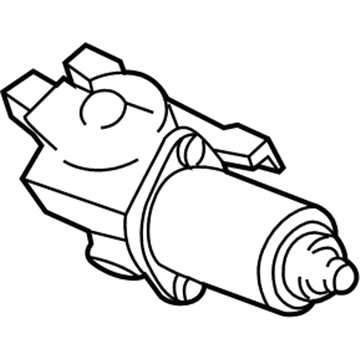

Mazda 6 Wiper Motor Part Number: GS3L-67-340
Product Specifications
- Other Name: Motor, Wiper
- Warranty: This genuine part is guaranteed by Mazda's factory warranty.
Fits the following Vehicles:
- 2009-2013 Mazda 6 | S, i | 4 Cyl 2.5 L GAS, 6 Cyl 3.7 L GAS
View related parts
Mazda 6 Wiper Motor Part Number: GP9A67340
Product Specifications
- Other Name: Motor, Wiper; Front Motor
- Warranty: This genuine part is guaranteed by Mazda's factory warranty.
Fits the following Vehicles:
- 2006-2007 Mazda 6 | Mazdaspeed, S, i | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS
View related parts
Mazda 6 Wiper Motor Part Number: GM9E-67-450
Product Specifications
- Other Name: Motor; Rear Motor
- Warranty: This genuine part is guaranteed by Mazda's factory warranty.
Fits the following Vehicles:
- 2004-2007 Mazda 6 | Mazdaspeed, S, i | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS

Mazda 6 Wiper Motor

Mazda 6 Wiper Motor is a part of the modern windshield wiper system. It delivers electrical power to the wiper blade motor. Moreover, it clears the moisture from the windshield for better clarity. Located beneath the hood, the small Mazda assembly features an electric motor attached to a worm gear that converts high-speed rotation into a slower high-torque movement to push the wiper arms across the glass. The built-in circuits allow the motor to work at more than one speed so that the cabin switch can vary the blade movement according to the weather. When the current flows through the motor, the worm gear will step down the rotation, which makes the linkage move both arms together in an arc across the windscreen. The effective functioning of this system is dependent on the working of the motor gear set, wiring, switch, and rubber-edged blades. Any wear of the part will lead to hesitation, loud sound, or loss of movement. A loud sound coming from the Wiper Motor is usually an indication of the internal gear or strained motor. If there is silence after switching the motor on, the circuit is broken or the Wiper Motor is faulty. Due to the separate housing of the washer pump and fluid path, clogged nozzles or cracked hoses will affect spray delivery but not the motor. However, on a dry windshield, blades will create friction and increase load on the assembly. This Wiper Motor keeps every Mazda 6 prepared for sudden showers, and owners can protect Mazda visibility by looking for sounds or movement changes.

Looking for Wiper Motor with proven quality? Choose OEM Wiper Motor. Mazda designs and builds them to strict factory specs. Every piece goes through rigorous quality checks. You'll get parts that fit right and work like new. Shop our huge inventory of OEM Mazda 6 parts. Enjoy the highly competitive prices online. Our site is your one-stop shop. Each genuine 6 part includes a manufacturer's warranty. Buy with confidence. Our return policy is simple and hassle-free. In a rush? Choose expedited delivery at checkout. You'll love the streamlined experience from search to checkout to receiving your order.

Mazda 6 Wiper Motor Parts and Q&A

Wiper Motor
GM9A-67-450B
Q:
How to replace Wiper Motor for the front and rear on Mazda 6?
A:
In order to change the front wiper motor, you have to begin by removing the wiper arm nuts and noting the location of the wiper arms on their own shafts before removing both the arms. Then remove the cowl panel, unhook the electrical connector into the wiper motor and unscrew the two mounting bolts to remove the wiper motor and link assembly. Take a good care to remove the linkage of the motor crank arm and then remove the nut that holds the crank arm to the motor shaft. Align the crank arm with the motor shaft and loosen it then disconnect it and then loosen the two motor mounting bolts to remove the motor out of the bracket. On the motor on the rear wiper, the first step is to disconnect the cable at the negative battery terminal, the next step is to loosen the nut on the arm and mark the position of the arm before removing it. Then remove the liftgate trim panel, remove the electrical connector to the wiper motor, and remove the mounting bolts in order to remove the wiper motor out of the liftgate. The two motors are reinstalled in the same order as they were removed.
