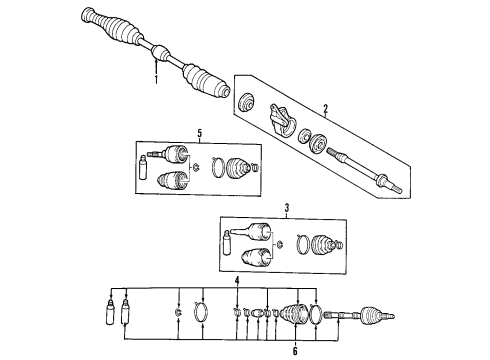

2003 Mazda Protege Axle Shaft, CV Boot

Axle Shaft, CV Boot Installation and Repair Tips for 2003 Mazda Protege

• Q:

  What role do CV Boot play in protecting constant velocity joints, and how should they be maintained on 2003 Mazda Protege?

  A:

  CV boots are needed to exclude the constant velocity (CV) joints from dirt and water. Wash them in order to avoid rust. The outer CV boot also wears more quickly because it has pivotal motion, and therefore it is important to check it regularly for tears, cracks, loose clamps, among others; damages should be replaced.
• Q:

  How is power transmitted from the transaxle to the wheels via the axle shaft on 2003 Mazda Protege?

  A:

  Power is transmitted by axle shafts splined to the differential and hubs. Inner sliding tripod CVs permit angular and axial motion and can be disassembled and cleaned; outer ball CVs permit angular only and require axle replacement if damaged. Inspect boots and joints for leaks, noise, play, and shaft damage.
