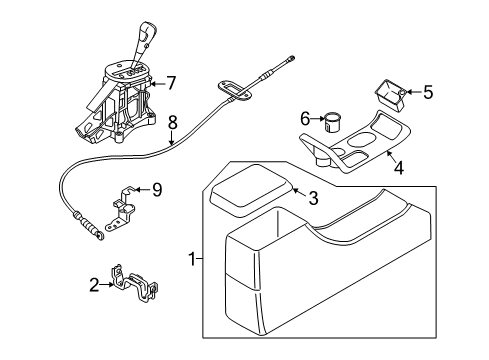

Diagram (1 of 1): Console - Center Console (Auto Transmission)

2005 Mazda Tribute Automatic Transmission Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
EF9164420G35
Console Assembly
- Part Notes: Auto Transmission, 2005-06, Medium Pebble
$128.18 $97.65
1
Add To Cart

2

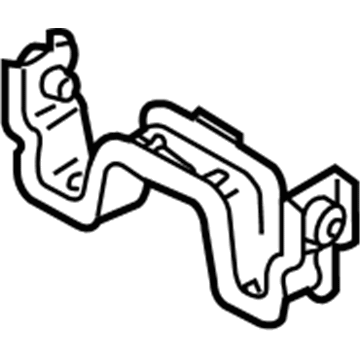

EF91-64-416A
Console Assembly Rear Bracket
- Part Notes: Auto Transmission, 2005-06

3
EF91-64-450-35
Lid
Part Notes: Auto Transmission, 2005-06, Medium Pebble
3
EF91-64-450-66
Lid
- Part Notes: Auto Transmission, 2005-06, Dark Flint
$84.33 $64.25
1
Add To Cart

4
EF91-64-320H-44
Trim Plate
- Part Notes: Auto Transmission, 2005-06, Silver

5
EF91-64-360C-70
Storage Compart
- Part Notes: Auto Transmission, 2005-06
$45.83 $34.36
1
Add To Cart

6
EC02-64-610F
Ashtray
- Part Notes: Auto Transmission, 2005-06

7

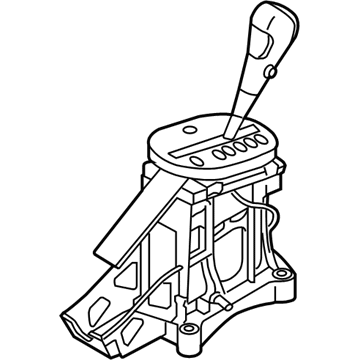

ZZC0-46-10X-23
Shift Lever
- Part Notes: Auto Transmission, 2005-06

8
EF92-46-500B
Control Cable
- Part Notes: Auto Transmission, 2005-06
$123.93 $92.93
1
Add To Cart

FW80-19-020
Drive Plate
- Part Notes: Tribute; 3.0L
$65.79 $49.34
1
Add To Cart

ZPRC-19-090R
Transaxle
Part Notes: Tribute; 2.3L; 2WD
$1405.08 $1070.46
1
Add To Cart
ZPRD-19-090R
Transaxle
- Part Notes: Tribute; 2.3L; 4WD
$1030.39 $785.00
1
Add To Cart
ZPRE-19-090R
Transaxle
- Part Notes: Tribute; 3.0L; 2WD; From 2/1/03
ZPRF-19-090R
Transaxle
- Part Notes: Tribute; 3.0L; 4WD; From 1/28/03
$2076.87 $1582.25
1
Add To Cart

OEM 2005 Mazda Tribute Parts for Automatic Transmission

All OEM parts go through rigorous quality control tests in order to ensure that they meet Mazda's standards for durability and quality. If you are looking for new OEM Automatic Transmission parts, MazdaPartsNow.com has variety of authentic, OE 2005 Mazda Tribute Automatic Transmission Seal, Transfer Case Seal, Transmission Assembly at competitive prices. All of our 2005 Mazda Tribute parts maintain the guarantee of the manufacturer's warranty, and are offered with timely options for delivery.

Transmission Assembly Installation and Repair Tips for 2005 Mazda Tribute

Q:
How to remove the automatic Transmission Assembly on 2005 Mazda Tribute?
A:
Removal typically starts with isolating the battery and disconnecting the transmission wiring. The engine is then supported as the mounts and driveaxles are detached, and fluids are drained. On models with 4WD, the torque converter is marked and the transfer case removed, supported, unbolted and lowered the transaxle. Reassembly is carried out in reverse, with seating, torque, fluids and cable adjustment.
