5 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.Engine / Transaxle - Engine & Trans Mounting (2.0L,Auto Transmission With AWD)
- 2.Engine / Transaxle - Engine & Trans Mounting (2.0L,Auto Transmission Without AWD)

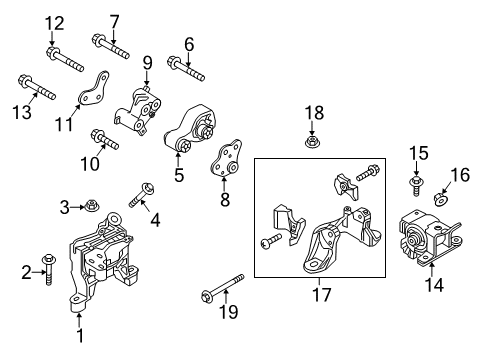

- 3.Engine / Transaxle - Engine & Trans Mounting (2.0L,Manual Transmission)

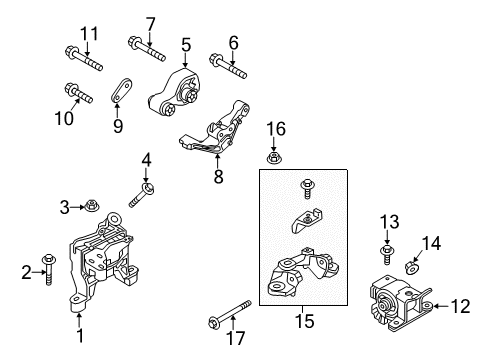

- 4.Engine / Transaxle - Engine & Trans Mounting (2.5L,With AWD)

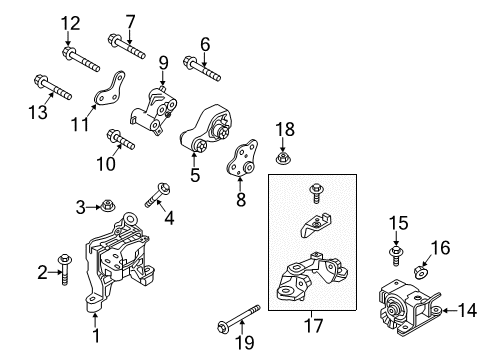

- 5.Engine / Transaxle - Engine & Trans Mounting (2.5L,Without AWD)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
$179.07 $134.281 - 1
$418.89 $314.101 - 1
KD47-39-060C
Front Mount- Part Notes: 2.0L, Auto Transmission With AWD;2.0L, Auto Transmission Without AWD
$342.18 $256.581
- 2
9YA0-2A-236
Front Mount Bolt- Part Notes: 2.0L, Auto Transmission With AWD;2.0L, Auto Transmission Without AWD;2.0L, Manual Transmission;2.5L, With AWD;2.5L, Without AWD
$5.50 $4.131
- 3
9YB0-41-240
Front Mount Nut- Part Notes: 2.0L, Auto Transmission With AWD;2.0L, Auto Transmission Without AWD;2.0L, Manual Transmission;2.5L, With AWD;2.5L, Without AWD
$5.05 $3.791
- 4
9YA0-2A-237
Front Mount Bolt- Part Notes: 2.0L, Auto Transmission With AWD;2.0L, Auto Transmission Without AWD;2.0L, Manual Transmission;2.5L, With AWD;2.5L, Without AWD
$5.95 $4.461
- 5
$216.16 $162.091 - 5
$124.46 $93.331 - 5
$191.39 $143.511
- 6
9YA0-21-454
Torque Arm Mount Bolt- Part Notes: 2.0L, Auto Transmission With AWD, # 1;2.5L, With AWD, # 1
$7.77 $5.831 - 6
9YA0-2A-414
Torque Arm Mount Bolt- Part Notes: 2.0L, Auto Transmission Without AWD, # 1;2.0L, Manual Transmission, # 1;2.5L, Without AWD, # 1
$8.48 $6.361
- 7
9YA0-2A-233
Torque Arm Mount Bolt- Part Notes: 2.0L, Auto Transmission Without AWD, # 2;2.0L, Manual Transmission, # 2;2.5L, Without AWD, # 2
$6.82 $5.111 - 7
9YA0-2A-414
Torque Arm Mount Bolt- Part Notes: 2.0L, Auto Transmission With AWD, # 2;2.5L, With AWD, # 2
$8.48 $6.361
- 8
KF06-39-010
Inner Bracket- Part Notes: 2.0L, Auto Transmission Without AWD;2.0L, Manual Transmission;2.5L, Without AWD
$18.66 $13.991 - 8
$120.92 $90.681
- 9

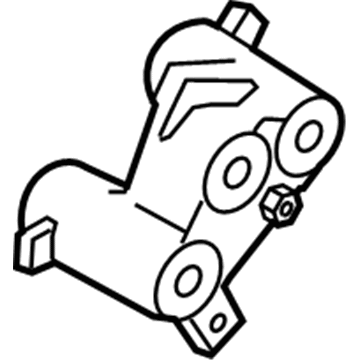

KD45-39-011
Mount Bracket- Part Notes: 2.0L, Auto Transmission Without AWD;2.0L, Manual Transmission;2.5L, Without AWD
- 9
$5.18 $3.891
- 10
9945-40-616
Mount Bracket Bolt- Part Notes: 2.0L, Auto Transmission Without AWD;2.0L, Manual Transmission;2.5L, Without AWD
$2.91 $2.191 - 10
9YA0-2A-241
Outer Bracket Mount Bolt- Part Notes: 2.0L, Auto Transmission With AWD, # 1;2.5L, With AWD, # 1
$5.32 $3.991
- 11
KD45-39-015
Outer Bracket- Part Notes: 2.0L, Auto Transmission Without AWD;2.0L, Manual Transmission;2.5L, Without AWD
- 11
9YA0-2A-415
Outer Bracket Mount Bolt- Part Notes: 2.0L, Auto Transmission With AWD, # 2;2.5L, With AWD, # 2
$8.78 $6.591
- 12
9YA0-2A-415
Outer Bracket Mount Bolt- Part Notes: 2.0L, Auto Transmission Without AWD, # 1;2.0L, Manual Transmission, # 1;2.5L, Without AWD, # 1
$8.78 $6.591 - 12
$184.89 $138.641
- 13
9YA0-2A-234
Outer Bracket Mount Bolt- Part Notes: 2.0L, Auto Transmission Without AWD, # 2;2.0L, Manual Transmission, # 2;2.5L, Without AWD, # 2
$7.94 $5.951 - 13
$6.09 $4.561
- 14

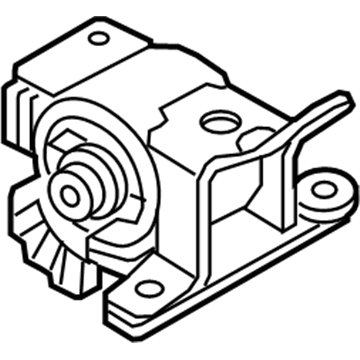

BJS7-39-070
Rear Mount- Part Notes: 2.0L, Auto Transmission Without AWD;2.0L, Manual Transmission;2.5L, Without AWD
$184.89 $138.641 - 14
$5.05 $3.791
- 15
$161.93 $121.431 - 15
9YA0-2A-417A
Rear Mount Bolt- Part Notes: 2.0L, Auto Transmission Without AWD;2.0L, Manual Transmission;2.5L, Without AWD
$6.09 $4.561
- 16
$5.50 $4.131 - 16
9YB0-41-241
Rear Mount Nut- Part Notes: 2.0L, Auto Transmission Without AWD;2.0L, Manual Transmission;2.5L, Without AWD
$5.05 $3.791
- 17
$198.05 $148.511 - 17
$161.93 $121.431 - 17
$7.81 $5.851
- 18
9YB0-41-411
Rear Bracket Nut- Part Notes: 2.0L, Auto Transmission Without AWD;2.0L, Manual Transmission;2.5L, Without AWD
$5.50 $4.131
- 19
9YA0-2A-235
Rear Bracket Bolt- Part Notes: 2.0L, Auto Transmission Without AWD;2.0L, Manual Transmission;2.5L, Without AWD
$7.81 $5.851
OEM 2016 Mazda CX-5 Parts for Engine & Trans Mounting
All OEM parts go through rigorous quality control tests in order to ensure that they meet Mazda's standards for durability and quality. If you are looking for new OEM Engine & Trans Mounting parts, MazdaPartsNow.com has variety of authentic, OE 2016 Mazda CX-5 Engine Mount at competitive prices. All of our 2016 Mazda CX-5 parts maintain the guarantee of the manufacturer's warranty, and are offered with timely options for delivery.
