2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

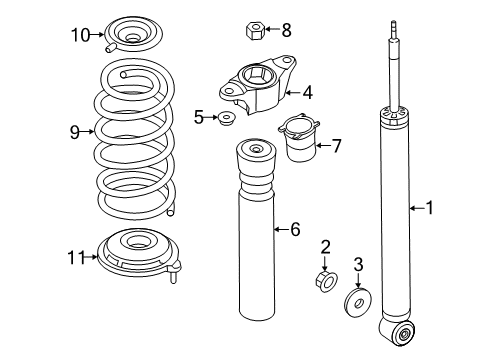

- 1.Rear Suspension - Shocks & Components (2.5L Non Turbo,AWD)
- 2.Rear Suspension - Shocks & Components (2.5L Non Turbo,FWD)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
KL2F-28-700A
Shock- Part Notes: FWD, 2.5L Non Turbo, From 06/22/2017;FWD, 2.5L Non Turbo, To 06/22/2017
- Location: Driver Side;Passenger Side
$181.06 $135.761 - 1
$168.82 $126.591
- 2
9YB0-41-413
Shock Nut- Part Notes: AWD, 2.5L Non Turbo;FWD, 2.5L Non Turbo
- Location: Driver Side;Passenger Side
$4.70 $3.531
- 3
KD45-28-999
Shock Washer- Part Notes: AWD, 2.5L Non Turbo;FWD, 2.5L Non Turbo
- Location: Driver Side;Passenger Side
- Replaced By: KSH6-28-999
$9.40 $7.051
- 4
TK48-28-380C
Shock Mount- Part Notes: AWD, 2.5L Non Turbo, To 10/01/2017;FWD, 2.5L Non Turbo, To 10/01/2017
- Location: Driver Side;Passenger Side
$61.18 $45.881 - 4
TK52-28-380C
Shock Mount- Part Notes: AWD, 2.5L Non Turbo, From 10/01/2017;FWD, 2.5L Non Turbo, From 10/01/2017
- Location: Driver Side;Passenger Side
$67.92 $50.931
- 5
9YB0-41-033
Shock Mount Nut- Part Notes: AWD, 2.5L Non Turbo;FWD, 2.5L Non Turbo
- Location: Driver Side;Passenger Side
$2.76 $2.061
- 6
KB7W-28-1A0
Bumper- Part Notes: AWD, 2.5L Non Turbo;FWD, 2.5L Non Turbo
- Location: Driver Side;Passenger Side
$28.79 $21.591
- 7
KF49-28-0A5
Boot- Part Notes: AWD, 2.5L Non Turbo;FWD, 2.5L Non Turbo
- Location: Driver Side;Passenger Side
$14.21 $10.661
- 8
9YB0-40-811
Top Nut- Part Notes: AWD, 2.5L Non Turbo;FWD, 2.5L Non Turbo
- Location: Driver Side;Passenger Side
$1.81 $1.351
- 9
$74.24 $55.661 - 9

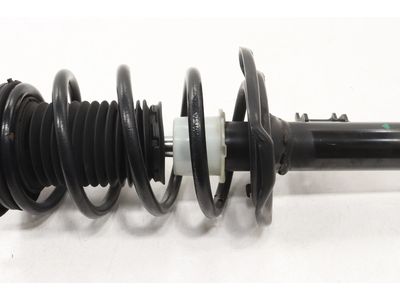

KF72-28-011C
Spring- Part Notes: AWD, 2.5L Non Turbo, Without Sunroof;FWD, 2.5L Non Turbo
- Location: Driver Side;Passenger Side
$80.34 $60.241
- 10
KD35-28-012
Upper Seat- Part Notes: AWD, 2.5L Non Turbo;FWD, 2.5L Non Turbo
- Location: Driver Side;Passenger Side
$30.30 $22.711
- 11
KD35-28-0A3
Lower Seat- Part Notes: AWD, 2.5L Non Turbo;FWD, 2.5L Non Turbo
- Location: Driver Side;Passenger Side
$28.02 $21.011
