How to properly replace a Brake Rotor on Mazda MX-5 Miata?

Question

Accepted Answer

Unscrew the lug nuts of the wheels, lift up the vehicle and place it safely on jack stands. Take out the wheel and replace it with the lug nuts to secure the Brake Rotor in place, and may use some washers under the nuts to ensure a good fit to the hub. Disassemble by removing the caliper of the brake without disconnecting the brake hose and hanging it off (via a piece of wire) after removing the caliper bolts. Examine the rotor surface of the rotor, both as to score marks and damage, of which light scratches and shallow grooves are normal, deep scoring of more than 0.039-inch (1.0 mm) necessitates refinishing by an automotive machine shop. Inspect the rotor on both sides, where serious wear caused by non-replacement of brake pads requires the change of the rotor. In order to record rotor runout, position a dial indicator on the edge of the rotor (approximately 1/2-inch away), position it to zero and rotate the rotor at a slow speed; when the reading surpasses the limit, refinishing is necessary. In any case an eventual resurfacing with a smooth finish is advisable to remove the brake pedal pulsation. Unless resurfacing, wipe out any glaze with a swirling motion with emery cloth or sandpaper. Take care not to machine the rotor below the minimum thickness specified and which is cast in the inside of the rotor and measure the thickness with a micrometer. Unscrew the bracket of the brakes caliper and take off the rotor on the hub. Install the new rotor on top of the wheel studs, caliper bracket, and screw the bracket bolts up to the required torque. Install the caliper and brakes pads, reattach the wheel and place the vehicle on the ground, tightening the lug nuts up to the required torque. Check the brake fluid level in the system, make adjustments where necessary and press the brake pedal a few times to check the contacts between the rotor and the brake pads. The only thing that needs to be done is bleeding when the brake hose is disconnected. Lastly, test the brakes to ensure that they are working properly before a person drives.

Genuine Mazda MX-5 Miata Brake Rotor

5 Brake Rotors found

Mazda MX-5 Miata Rotor Part Number: N251-26-251

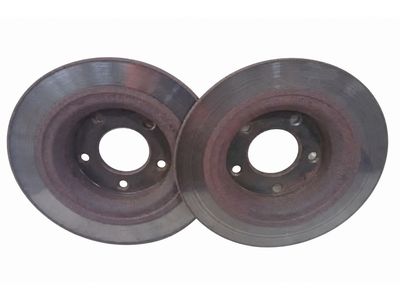

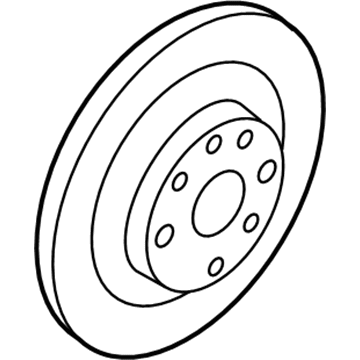

Mazda MX-5 Miata Rotor Part Number: N123-26-251B

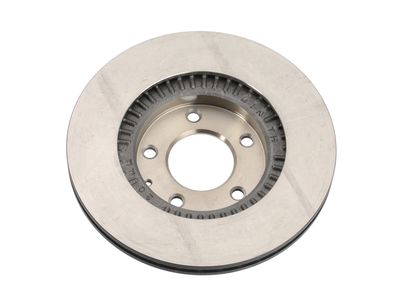

Mazda MX-5 Miata Rotor Part Number: N12Y-33-25XC

Mazda MX-5 Miata Rotor Part Number: N251-33-251

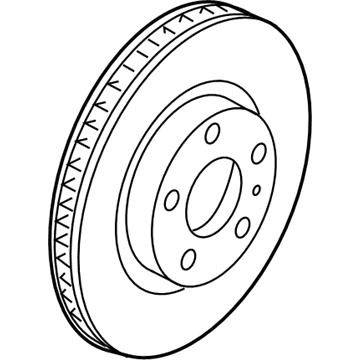

Mazda MX-5 Miata Rotor Part Number: NA5F-33-251A

Mazda MX-5 Miata Brake Rotor

Mazda MX-5 Miata Brake Rotor Parts and Q&A
