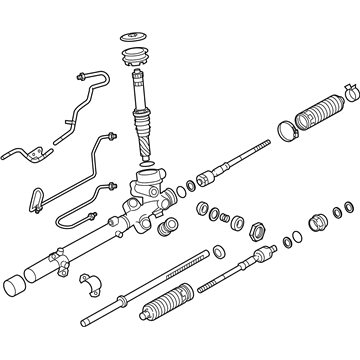

Genuine Mazda MX-5 Miata Rack And Pinion

Mazda MX-5 Miata Rack And Pinion Parts and Q&A

• Rack
  NE51-32-119
  Q:

  How do Rack And Pinion play a role in disconnecting and replacing the steering gear assembly on Mazda MX-5 Miata?

  A:

  Unattach the cable at the negative terminal of the battery and then wait at least 2 minutes before continuing. Unscrew the lug nuts of the front wheel, elevate the front part of the car, and put it on jackstands. Use the parking brake and take off the wheels, and then the engine undercover splash shield. Should you have power steering fitted, lay a drain pan under the Rack And Pinion, loosen the power steering pressure and lines and cover up or seal the ends to avoid excessive loss of fluid and contamination. Indicate the connection of the steering column universal joint at the Rack And Pinion input shaft, loosen the universal joint pinch bolt and decompose the intermediate shaft U-joint with input shaft. Disconnect Steering Knuckle arms and tie-rod ends. Incidentally, use the Rack And Pinion, and loosen the mounting bolts that connect the Rack And Pinion to the steering column shaft and unmount the steering column shaft to the Rack And Pinion input shaft and take the Rack And Pinion assembly. Inspect the clock-spring, and position the clockspring connector in case the steering wheel has been accidentally turned. Check the mounting grommets of Rack And Pinion to ensure there is no excessive wear or deterioration and replace where needed. Install Rack And Pinion into position, joining Rack And Pinion input shaft with steering shaft universal joint aligning the marks and install Rack And Pinion mounting brackets and bolts, tapping, with the required torque. Install the Tie Rod Ends to steering knuckle arm, fit universal joint pinch bolt and clamp it to required torque. Should it be fitted with power steering, lay the hose of power steering pressure and power steering return hose to Rack And Pinion and fill in the steering power pump reservoir with suggested fluid. Reduce the vehicle and bleed the steering system and have a dealer service department or alignment shop check the alignment.
