Question 1

What precautions and procedures are necessary for handling and replacing air bag components on Mazda Millenia?

Accepted Answer

The vehicle has three crash sensors in the front part and one more sensor in the portion of the passenger compartment of the vehicle which monitors the deceleration during collision. In case these sensors come on at the same time, the airbag is deployed. The warning lamp is used to show any problems that are within the airbag system which is regulated by a diagnostic module that shows a coded warning in case of any problems. The recommendations involve disconnection of the negative battery cable and the clock spring electrical connectors during the replacement of any airbag parts because they should not be torn to pieces but they are supposed to be replaced in case they are faulty. Airbag wiring harness is not to be repaired, and the ohmmeter is not to be applied to test the airbag module in order to prevent unintentional deployment. This is because a live undeployed airbag must always be carried with the trim cover turned away between the body and when the airbag is placed on a flat surface, the trim cover must always be placed facing the sky. A deployed airbag should be handled with gloves and safety glasses in case of the presence of caustic materials, and it has to be properly disposed of. The arrangement of the crash sensors is very crucial and even the slightest damage to the front end would require examination of the crash sensors. When the steering wheel is taken off, the airbag clock spring connector should be adjusted. To turn off the system, an audio anti-theft system, when fitted, must be turned off, ignition switch must be set to LOCK, negative battery cable must be removed and one should wait more than a minute to wait until the backup power supply has drained. The driver side undercover and the lower dash panel should be removed to break the clock spring connectors and, then, the glove compartment should be removed to break the passenger side airbag module connectors. To arm the system the same initial steps will be done, and the clock spring connectors and passenger side airbag module connectors will be reconnected, the glove compartment and the panels will be reinstalled and there must be no one in the vehicle and finally the negative battery cable will be reconnected.

Question 2

What are the differences in air bag systems on Mazda MPV?

Accepted Answer

All newer models of 1994 and beyond have a front impact airbag system called a Supplemental Restraint System (SRS) as compared to earlier models where only the steering wheel driver had an airbag to protect against a frontal impact. Subsequent models have an extra airbag unit on the right side of the instrument panel, which is operated by an SAS unit in the lower middle of the instrument panel, instead of sensors on the front of the car. Other important systems in these systems are the clockspring that supplies the battery to the steering wheel airbag and the airbag readiness light in the instrument cluster. The driver airbag inflator device in the middle of the steering wheel is activated by the electrical signal sent to the bag nearly immediately, and the clockspring assembly sends the electrical signal to the bag irrespective of the steering wheel position. The passenger airbag is bigger than the driver airbag and it is attached in the right end of the instrument panel and has textured trim cover which tears in case of inflation. When there is a crash, the SAS provides power to the SRS when battery power is turned off as well as verifies the SRS every time the vehicle is turned on, which reflects its condition as indicated by the airbag readiness light. In case of a fault, the light should not be turned off, and the service is needed. To work anywhere around any of the airbags, it is very essential to disarm the system by moving the ignition key to the LOCK position, removing the negative battery terminal and wait a minimum of two minutes to allow the backup power supply to discharge. Never touch airbags with the opening facing the body, are not to measure the resistance of any SRS component, and should never throw a live airbag away: turn it over to an authorized repair facility to be deployed and properly discarded. Removal and installation of the components require steering wheel and clockspring operations to remove the airbag of the driver side and passenger airbag will not require any removal unless it is inevitable, then professional services are advisable. Equally, the SAS cannot be discarded and any necessary servicing done by a qualified repair shop.

Genuine Mazda Air Bag

109 Air Bags found

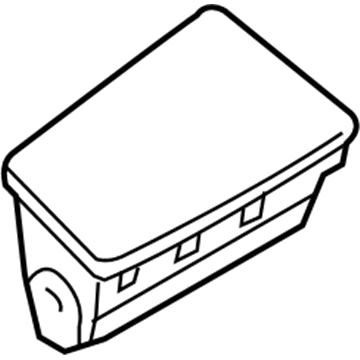

Mazda Passenger Air Bag Part Number: GBEF-57-K50

Mazda Inflator Curtain Part Number: BN8W-57-KN0

Mazda Inflator Curtain Part Number: BP6L-57-KM0A

Mazda Inflator Curtain Part Number: BP6L-57-KN0A

Mazda Inflator Curtain Part Number: F151-57-KN0E

Mazda Passenger Air Bag Part Number: 1F60-57-K50-27

Mazda Inflator Curtain Part Number: TM52-57-KM0A

Mazda Inflator Curtain Part Number: TM52-57-KN0A

Mazda Inflator Curtain Part Number: TK48-57-KM0F

Mazda Inflator Curtain Part Number: TK48-57-KN0F

Mazda Inflator Curtain Part Number: TK21-57-KN0A

Mazda Passenger Air Bag Part Number: EC01-57-K70L-24

Mazda Passenger Air Bag Part Number: LC62-57-K70G-02

Mazda Passenger Air Bag Part Number: EHY4-60-35X

Mazda Passenger Air Bag Part Number: 1FAA-57-K50-30

Mazda Passenger Air Bag Part Number: CC43-57-K50

Mazda Passenger Air Bag Part Number: BBM4-57-K50C

Mazda Passenger Air Bag Part Number: BBM4-57-K50B

Mazda Passenger Air Bag Part Number: NA1J-57-K50

Mazda Passenger Air Bag Part Number: DR61-57-K50A
