Question 1

How to remove and install turn signal lights on Mazda B2200?

Accepted Answer

To remove and install front turn signal, parking, and side marker lights on pickups, disconnect the negative battery cable, remove the lens mounting screws, pull off the lens, push in on the bulb, and twist it counterclockwise to remove it, with installation being the reverse. For the MPV, disconnect the battery ground cable, remove the grille side moldings by freeing the snap clips, remove the lens mounting screws, turn the socket counterclockwise to pull it out, push in on the bulb, and twist it counterclockwise to remove it, with installation being the reverse. In the Navajo, loosen the two mounting nuts to remove the parking/turn signal lamp assembly, loosen the one mounting screw to remove the side marker lamp housing, turn the socket(s) counterclockwise to remove the bulbs, and pull the bulb straight out of the socket, followed by installing the new bulb, securing the socket, and checking the operation of the lights. For rear combination lights on pickups, remove the lens mounting screws, pull off the lens, push in on the bulb, and twist it counterclockwise to remove it, with installation being the reverse. In the MPV, the process is similar, while in the Navajo, remove the two screws retaining the lamp assembly, pull it outward, twist the lamp sockets to remove them, and pull the bulb straight out, followed by installing the bulb, securing the socket, positioning the lens assembly, and checking the lights. For back up lights on the MPV, remove the lens mounting screws, pull the lens away, turn the socket counterclockwise to release it, push in on the bulb, and twist it to remove it, with installation being the reverse. The high mount brake light on the Navajo requires removing the screws, pulling the lamp away, disconnecting the wiring, twisting the socket to remove it, and pulling the bulb straight out, followed by installing the bulb, securing the socket, positioning the lens assembly, and checking the lights. For the dome light, remove the plastic cover, pull the bulb from the assembly, and reinstall in reverse order. The Navajo has a cargo light on the roof headliner, the MPV has one on the liftgate door, and the Cab Plus Pickup model has an additional passenger area lamp; to replace the bulbs, pry off the lens and pull out the bulb, then install the new bulb. For license plate lights on pickups, remove the lens mounting screws, pull off the lens, push in on the bulb, and twist it counterclockwise to remove it, with installation being the reverse. In the MPV, remove the lens mounting screws, pull down the assembly, separate the lens from the gasket, pull the bulb straight out, and reinstall in reverse order. For the Navajo, grasp the lamp socket from underneath, rotate it, pull it from the lens, remove the bulb, and reinstall in reverse order.

Question 2

What are the functions and locations of turn signal lights, and how can they be diagnosed and replaced on Mazda Protege?

Accepted Answer

Flashing of turn signals and hazard flashers is done by the turn signal/hazard flasher which is a small canister type in shape found on the driver side of the fuse box under the dashboard. It is fitted on a bracket with the Horn relay, TNS relay, Headlight relay and Wiper relay in older models, but in the more recent models, it is located behind the lower dashboard panel under the steering wheel and has to be removed by removing the left side panel, the lower panel screws, and a push fastener. The flasher unit makes a clicking sound when it is operating correctly; when the turn signals do not work on one side and the clicking sound is not heard, it is probable that the turn signal bulb is defective. To test the flasher relay, make the ignition on and use the turn signal switch to make sure that the front and rear signals flash and operate the Hazard warning switch to make sure the front and rear signals flash too. In case neither of the two turn signals flash, possible causes are a faulty flasher unit, a broken bulb, a faulty switch, or a loose/open electrical connection; a blown fuse indicates that there may be wiring shorts that need to be checked before replacing the fuse. To change the flasher, loosen it by removing it out of its mounting bracket and loosen it by pulling it out of the electrical connector. In case, there is a suspicion on a faulty flasher, the same can be tested by a dealer or qualified shop and in case of defective units, the same has to be replaced as a single unit and the replacement unit should be identical to the original. When only one of the sides is not blinking, proceed to examine the possibility of burnt out bulbs, and installation is in the opposite order of the removal.

Genuine Mazda Turn Signal Lights

118 Turn Signal Lights found

Mazda Signal Lamp Assembly Part Number: GS3L-51-5E0B

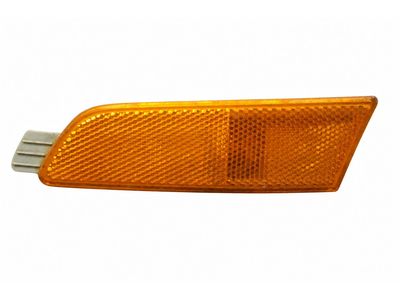

Mazda Signal Lamp Assembly Part Number: GS3L-51-5F0B

Mazda Lamp Part Number: GEG1-69-122

Mazda Lamp Part Number: GEG1-69-182

Mazda Turn Signal Lamp Part Number: BHS2-69-122A

Mazda Turn Signal Lamp Part Number: BHS2-69-182A

Mazda Signal Lamp Part Number: DFR5-69-122B

Mazda Signal Lamp Part Number: DFR5-69-182B

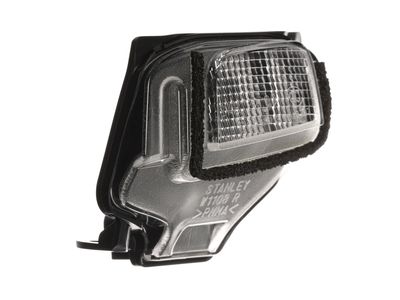

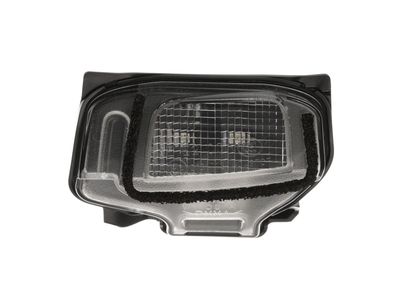

Mazda Signal Lamp Part Number: GHP9-69-122C

Mazda Signal Lamp Part Number: GHP9-69-182C

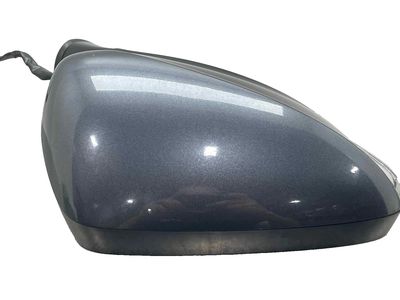

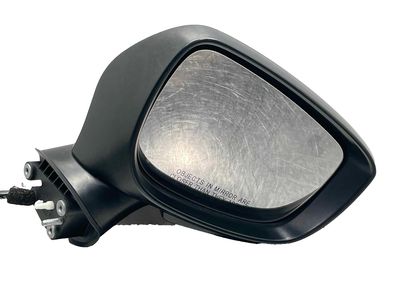

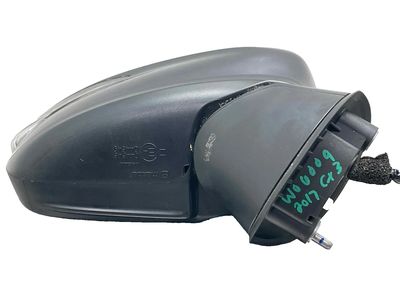

Mazda Signal Lamp Part Number: D10E-69-122A

Mazda Signal Lamp Part Number: D10E-69-182A

Mazda Turn Signal Lamp Part Number: GJ6A-51-120E

Mazda Side Marker Lamp Part Number: NA1J-51-5H0C

Mazda Side Marker Lamp Part Number: NA1J-51-5J0C

Mazda Signal Lamp Part Number: B63B-69-182A

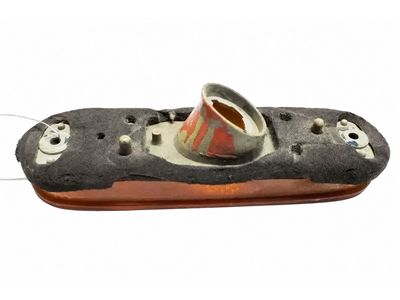

Mazda Side Marker Lamp Part Number: NA01-51-5FXA

Mazda Signal Lamp Part Number: B63B-69-122A

Mazda Side Marker Lamp Part Number: 8BN1-51-120

Mazda Repeater Lamp Part Number: B01W-51-120
